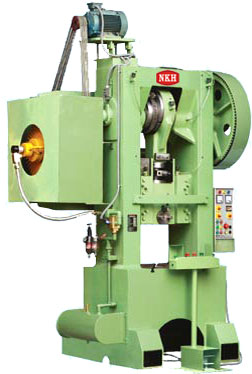

POWER PRESS "C" FRAME





  Features:

This C-Type press features one piece frame of rolled steel plates, carefully proportioned and Mig welded for maximum strength and rigidity.
Crankshaft from high carbon steel. Crank pins are extra large to minimize deflection and to provide wide bearing areas. The press is equipped with Rolling key clutch with repeated and non-repeated safety device. Capacity 10 to 250 Tons.



Capacity (Tons)
10
20
30
50
75
100
150
200
1. Table Size (MM)
350 x 425
375 x 450
450 x 500
450 x 600
525 x 750
600 x 875
700 x 1000
800 x 1125
2. Dist. Table to RAM
225
250
275
300
350
375
450
500
3. Punch Hole Size
25
28
32
32
38
38
45
63
4. Stroke Length
50
50
75
90
100
100
125
150
5. RAM Adjustment
25
28
32
32
38
38
45
63
6. Shut Height
175
200
200
210
250
275
325
350
7. Stroke per minute
80
70
65
55
45
45
35
35
8. Bore in Table
100
110
125
150
175
200
225
250
9. H.P. Required
2
2
3
5
5
7.5
10
15
10. RPM
1440
1440
1440
1440
1440
1440
1440
1440
11. Pully Size
125
125
150
150
150
150
175
200
12. Gross Weight (Approx.)
1100
1500
1900
2600
4000
6000
8500
11000
