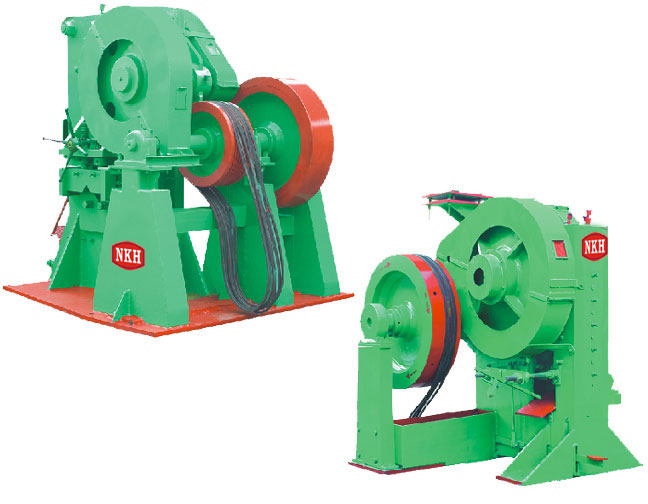

BILLET SHEARING
Precision Blank Making for Cold & Hot Metal Forming Capacity 50mm, 75mm, 100mm, 150mm, 200mm
Bloom & Plate Cutting Machine
1.
These machines are manufactured to cut various sizes of Blooms and Slabs
2.
The capacity of these machines varies from 500mm to 200mm
3.
Six number of gears are provided to facilitate operations with small power.
4.
The body is made from M.S. (plates)
5.
Cutting of Stainless Steel Billet 50mm to 200mm Plate thickness ½” to 2”, width 8”.
1.
Capacity
2"
3"
4"
5"
6"
8"
2.
Main Gear
32"
42"
42"
42"
50"
72"
3.
Main Shaft
6"
9"
10"
11"
13"
18"
4.
No. of Pcs per Minute
30
25
20
17
14
10
5.
Working Height
32"
32"
32"
36"
36"
40"
6.
Appox.Weight
4 Ton
5½ Ton
8 Ton
9 Ton
12 Ton
18 Ton
7.
Height in Feet
5½
6½
7½
8½
9½
10
8.
Fly Wheel Dia
(in inches)
30
42
42
42
50
66
9.
H.P. Required
10 H.P.
20 H.P.
25 H.P.
40 H.P.
50 H.P.
100 H.P.
10.
R.P.M.
1440
1440
1440
1440
1440
1440
