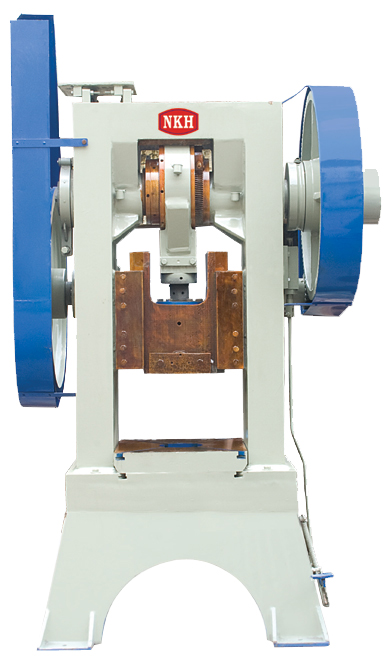

POWER PRESS "H" FRAME








  Features:

The frame is of most rigid construction of one piece steel welded construction of fusion welding quality and fully stress relieved. All bushes of nickel phosphors bronze. Provided with foot operated rolling key clutch. Supplied with adjustable strokes. Stroke may be changed in thirty seconds. Centralized lubrication is provided Capacity 10 to 500 tons.



Capacity (Tons)
20
30
50
75
100
150
200
250
300
400
1. Table Size
(MM)
440x440
430x455
455x480
525x580
555x600
625x650
800x800
850x850
900x900
1000x1000
2. Dist. Table
to
RAM
250
260
300
350
375
425
450
500
550
600
3. Punch Hole
Size
28
32
32
38
38
45
63
63
63
75
4. Stroke
Length
65
75
90
100
100
125
150
150
150
150
5. RAM
Adjustment
25
25
38
38
38
50
50
50
50
60
6. Shut Height
185
185
210
250
275
300
300
350
400
450
7. Stroke per
minute
70
65
60
50
45
40
35
35
35
30
8. Bore in
Table
120
120
150
175
200
225
250
250
300
300
9. Power
Required
2 HP
3 HP
5 HP
5 HP
7.5 HP
10 HP
15 HP
20 HP
30 HP
40 HP
10. RPM
1440
1440
1440
1440
1440
1440
1440
1440
1440
1440
11. Pully Size
150
150
150
150
150
175
200
200
225
225
12. Gross
Weight
(Approx.)
1200
1500
2000
2700
3800
5200
7800
9000
11000
12500
